Extremely well know for its accomplishments in professional racing; The Fueltech line of ECU’s have become the benchmark for racing management control. For almost 10 years the FT600 using the PowerFT software has been the proven anchor for the Fueltech line up. As Fueltech moves into the next generation of ECU technology; Fueltech has now released the FT700 controller as part if the next decades Vision software.
FT700 using FT Vision Software.
FT600 using PowerFT Software.
The FuelTech FT700 is a high-performance Vehicle Control Unit (VCU) featuring 36 configurable inputs and 50 configurable outputs, plus 2 internal wideband O2 controllers. Designed to be a drop-in replacement for the FT600, it uses the same dual 34-pin SuperSeal connectors (A and B) while adding two extra harness connectors (C and D) for expanded I/O and multimedia capabilities. The FT700 utilizes a fuel VE based airflow model for mor precise fueling control. AI and custom configurable functions are also new advances.
The wideband conditioners are also built into the VCU.

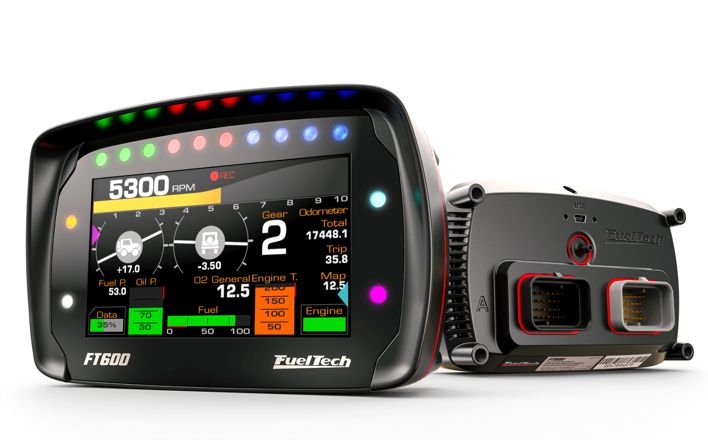

The FuelTech FT600 is a high-end ECU featuring 20 sensor inputs and 32 configurable outputs, utilizing dual 34-pin SuperSeal connectors (68 pins total). It supports advanced engine management, including full sequential injection for up to 24 outputs, drive-by-wire, built-in accelerometer/gyroscope, and direct strain gauge shifter integration.

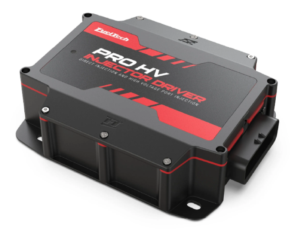

Fueltech ProHV Injector Driver
Designed to run high voltage Direct Injector and also can be used for better control of the larger low impedance injectors.

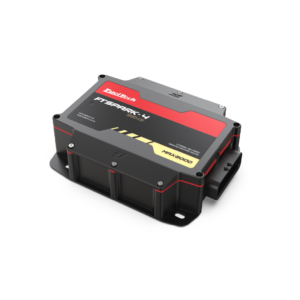

Fueltech FT Spark2000 GEN3
The ultimate CDI boxed needed to handle very high cylinder pressures and high density alcohol used combustion chambers found in 2500 HP and up engines.

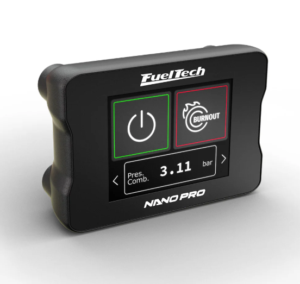

Fueltech Nano Pro Widebands

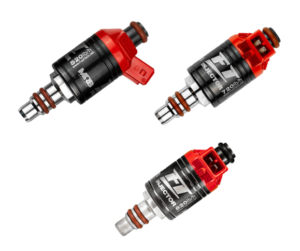

Fueltech High/Low Impedance Injectors

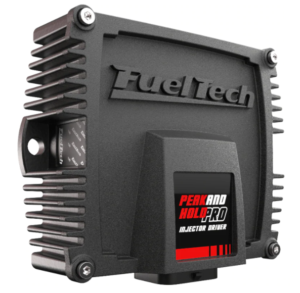

Fueltech Peak/Hold Pro Driver
